Universal Hardness tester



Not sure of your future needs…?

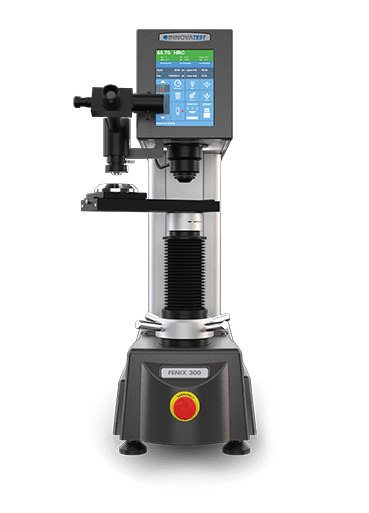

In addition to Rockwell and Superficial Rockwell, the FENIX 300U has the ability to perform Vickers, Knoop and Brinell scales. A fit for purpose machine for workshops usually measuring Rockwell scales and occasionally Vickers, Knoop or Brinell. Excellent choice for education institutes such as technical schools, universities and versatile general workshops.

The electronic microscope with exchangeable lenses and ringlight for the measurement of shallow Brinell indents is easy to use and provides crisp images of the indent.


Scales: Rockwell, Superficial Rockwell, Vickers, Knoop & Brinell

Test forces: 1kgf- 250kgf

Load app. system: Meets or exceeds the requirements of ASTM and ISO

Display: 6.5” industrial full color touchscreen

Micropscope: Electronic eyepiece, microscope system and integrated
ringlight for Brinell measurements

Software: I-TOUCH™ software system, advanced tester control

Memory: Large internal memory stores 150 readings

Output: USB

Illumination: Integrated power LED test spot illumination

Bottom Shell: Replaceable ABS bottom cover avoids body damage.

Workpiece Acc: 240mm (H) X 150mm (D)
