NEMESIS 6100 represents the latest top development of high speed production Rockwell hardness testing, standing for modern design, latest technology, multi-purpose hardness testing and precision mechatronic components.

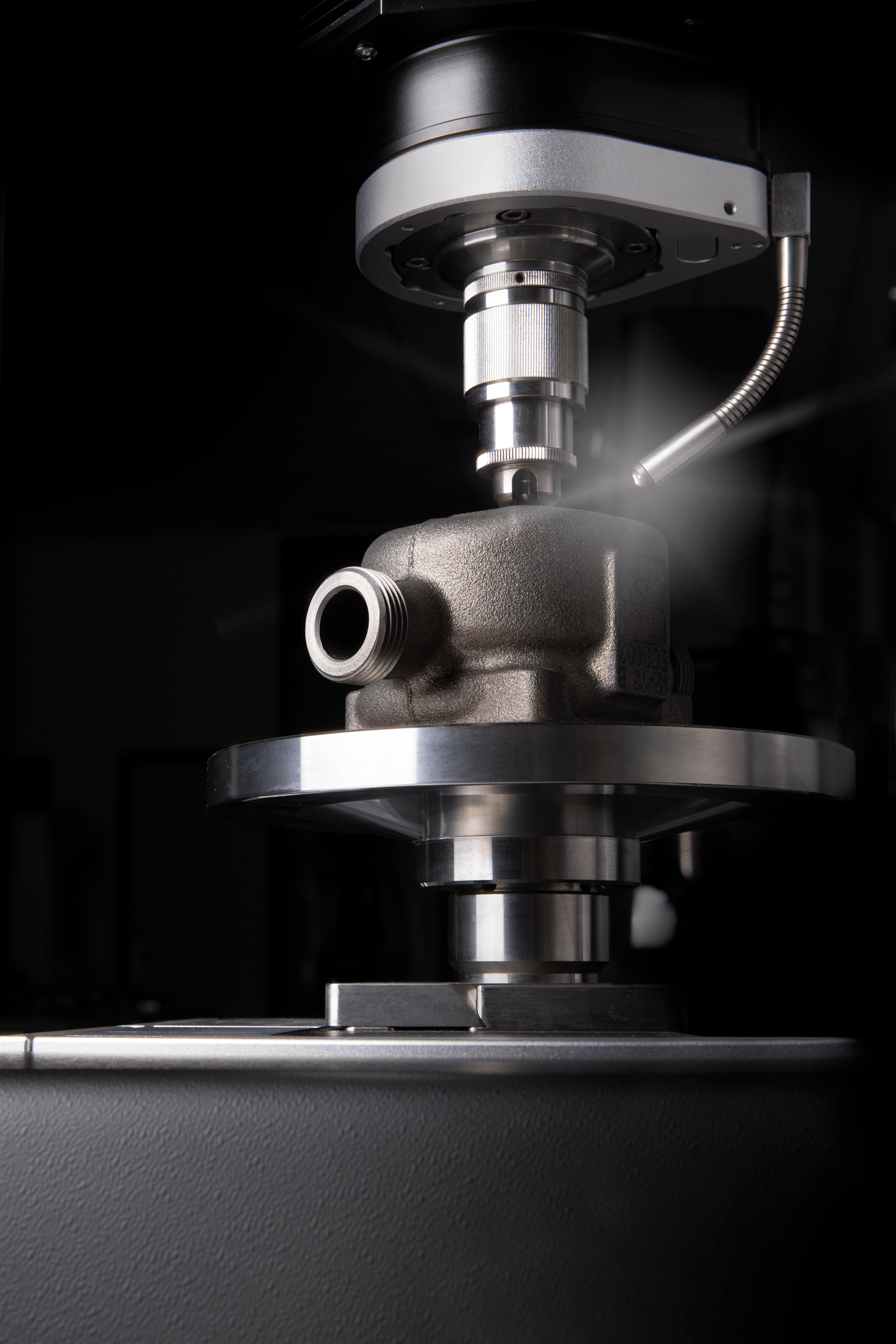

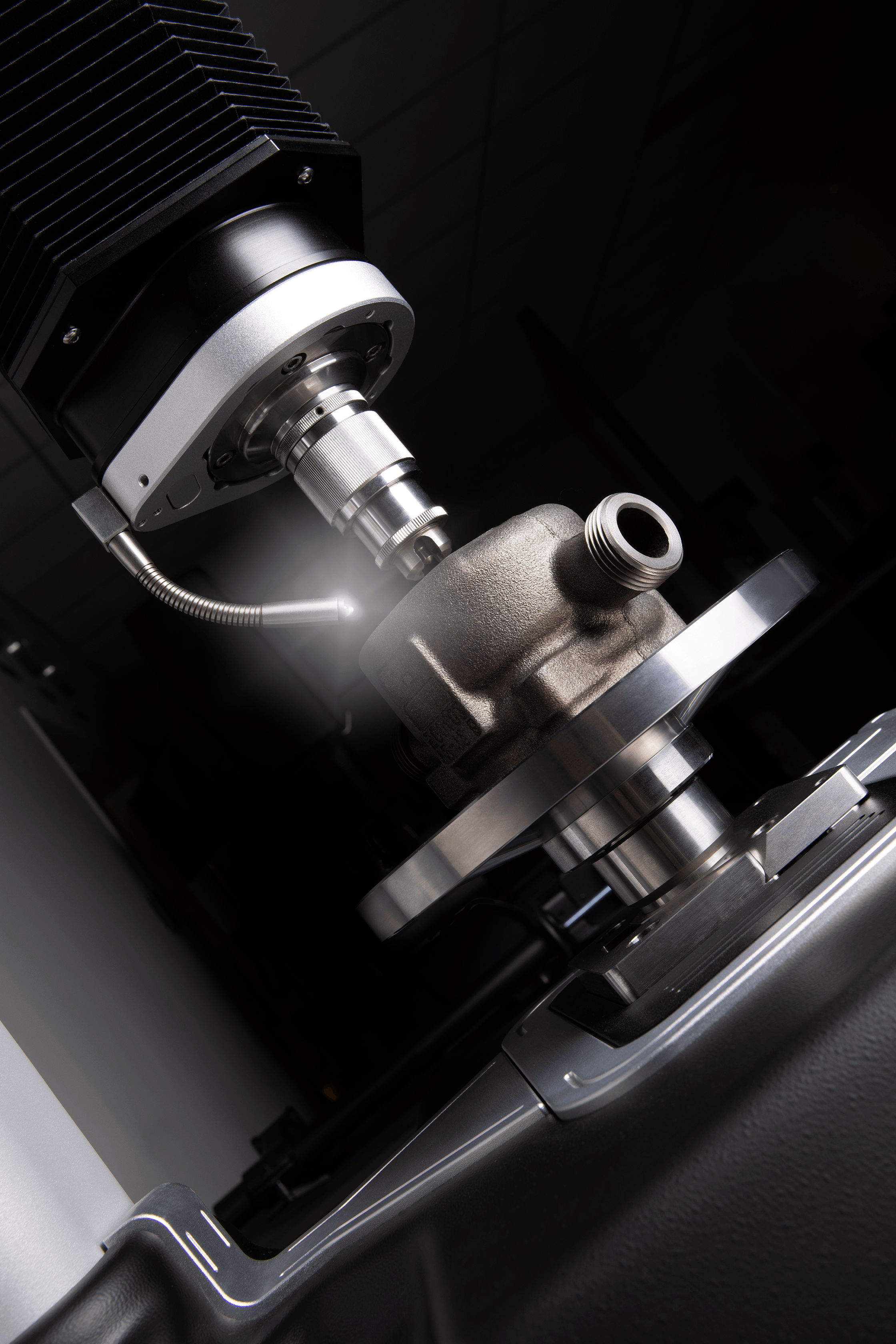

The rigid linear force actuator moves the test head in the required position, providing hardness testing results at the highest standard.
Aircraft engine parts, automobile parts, production lines, general quality assurance and laboratory use are all covered by the NEMESIS 6100.
Scales: Rockwell & Superficial Rockwell, Brinell (RSB models)
Test Forces: 3, 10kgf pre-load; 60, 100, 150kgf main load. All Brinell test forces from 1kgf – 250kgf (RSB models)
Load App. System: Fully automatic, Load cell, closed loop, force feedback
Control: I-TOUCH™ software
Display: 6.5” color touchscreen
Advanced Output: USB, single readings, text file reports
Software: No. of tests, Mean, St. Deviation, Min., Max., Range, CP, CPk, individual readings list, storage memory, Dwell time, test force setting, scale selection, calibration etc
Illumination: Adjustable workpiece illumination
Z-Axis: Descending test head, with collision detection, CNC motorized, ball bearing spindle, with fast up down and joystick for fine adjustment
XY-Stage: Manual, motorized stages (NEMESIS 6200) or/and anvils or work tables at choice
Workpiece Acc.: 345mm (H) X 220mm (D)
