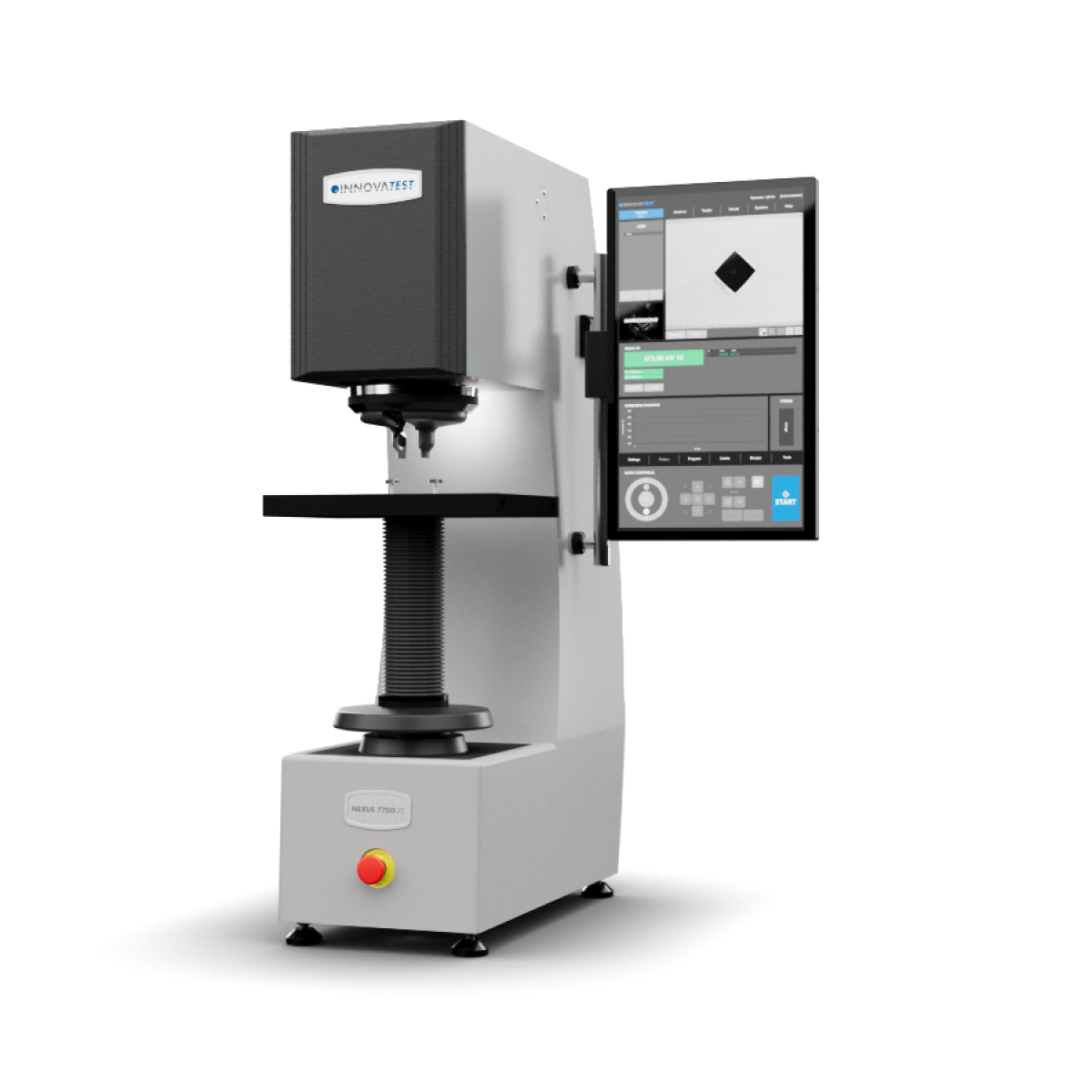

NEXUS 7700G2

UNIVERSAL HARDNESS TESTER

The icon of Universal hardness testing!

The NEXUS 7700G2 revives once more as the world’s most popular Universal Hardness Testing machine. This next generation of the originally 1960’s developed matt screen universal hardness tester with swivel system for indenters and
objectives offers significant new features and benefits for its enthusiastic users. There is a new high resolution 11 megapixel camera on board of the 7700G2 supporting a brand new infinite type optical system. Image quality – far superior to any similar machines on the market.

Unique is the Quick Change adapter for objectives. It now takes less then 2 seconds to change the magnification objectiv to a larger or lower magnification at choice. The new software platform with larger screen provides simple operation and a low learning curve.
IMPRESSIONS™ 4 also supports the use of motorized stages on the 7700G2. Economic high-end hardness testing according to ASTM, ISO, JIS and GB standards.





Highlights

Scales: Rockwell, Superficial Rockwell, Brinell, Vickers, Knoop

Test Forces: 500gf – 250kgf (multi load cell, closed loop)

Camera: 11 Megapixels, 4K+ Full HD camera system, with zoom and auto-focus

Overview Camera: Full HD optical zoom stage overview camera

Objectives: 0.7X, 2.5X, 5X, 10X, 20X

Quick change system: Two position swivel system, indenter/objective

Control: Fully integrated i7 Controller, Windows 10 operated, 22” industrial HD touchscreen, IMPRESSIONS™ advanced workflow software, includes automatic measurement, stage control & pattern configurator, key board & mouse

Illumination: Workstage illumination and process indicators

Z-Axis: Precision Z-Axis displacement by ergonomic handwheel

XY-Stage: Manual, motorized stages or/and anvils or work tables at choice

Joystick: X-Y-Z control over integrated joystick

Workpiece Acc.: 340mm (H) X 205mm (D)

Output: USB, LAN, Bluetooth

Software: Large choice of software options, features, plug-ins and add-ons, Q-DAS certified
